Logitech Rally Bar
Where can I use this device?
You can use this device in:
- Faculty Conference 2312G, Hill Library
This device may not be used outside the Libraries.
About this device

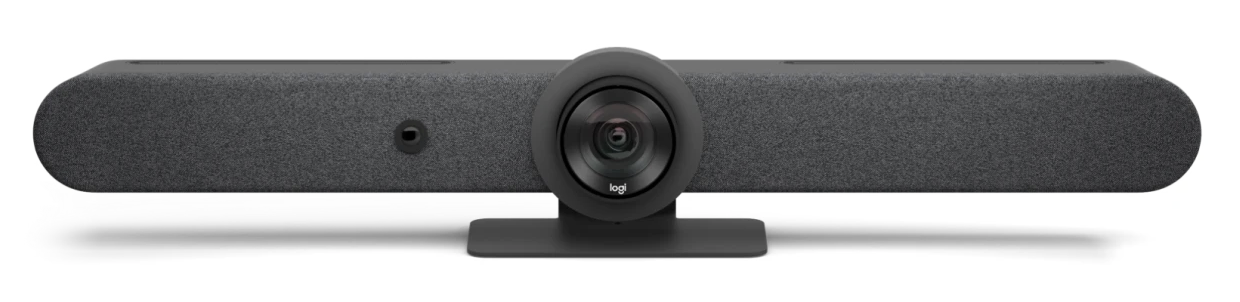

The Logitech Rally Bar is a video conferencing all-in-one with camera, speakers, and microphone. The Rally Bar works well in medium to large size rooms.
-
What are the hardware specifications?
Built-in Components
- 6 beamforming microphones
- PTZ camera
- 2 speakers
- AI Viewfinder
- Cable management and retention system
- Table stand,
- Logitech CollabOS platform
Enclosure
All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
Camera
- Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
- Pan: Motorized ±25°
- Tilt: Motorized ±15°
- Zoom: 15X HD zoom (5X optical and 3X digital)
- Total Room Coverage (field of view + pan and tilt): 132.1° Horizontal x 82.2° Vertical
Speakers
- Drivers: 2x 70 mm / 2.7 in
- Sensitivity: 92dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
- Rated Power: 8W
- THD: 1kHz < 2% at 1W
- Speaker Sampling Rate: 48 kHz
- Impedance: 4 Ohms
Microphones
- Frequency Response: 90Hz – 16kHz
- Sensitivity: >-36dBFS +/-1 dB @ 1Pa
- Microphone data rate output: 48KHz
- Pickup Range: Up to 23 ft (7m)
- Beamforming Elements: 6 omnidirectional digital MEMS microphones forming 5 adaptive acoustic broadside beams
- Audio processing: Acoustic Echo Cancellation, Voice Activity Detector
- Noise suppression: AI based de-noising algorithm
